Introduction:

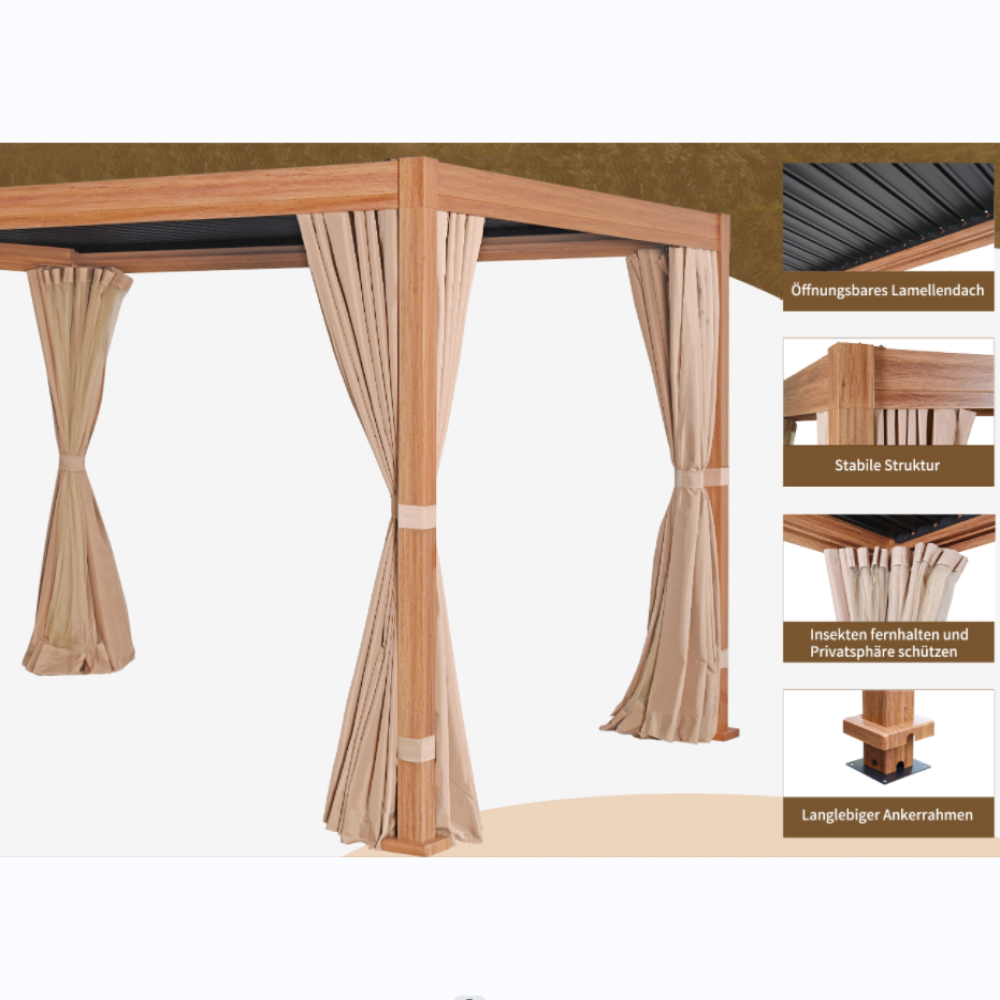

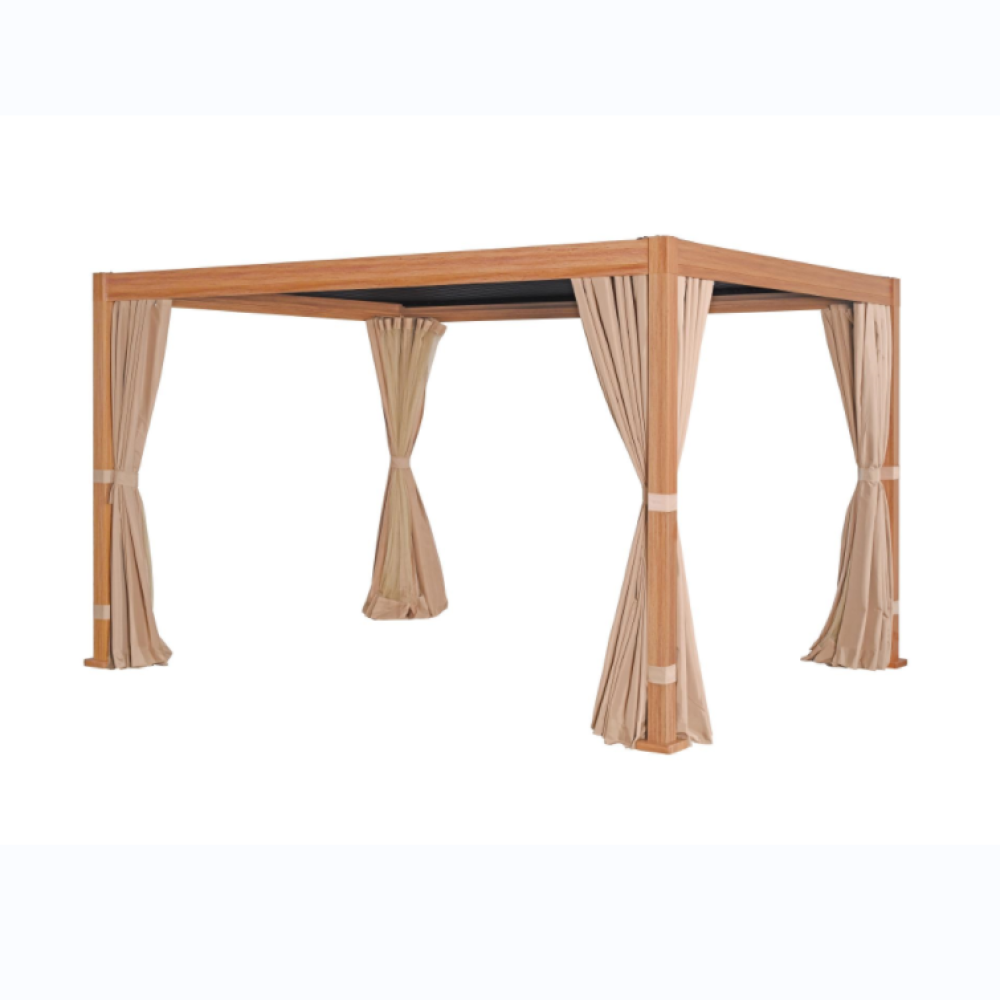

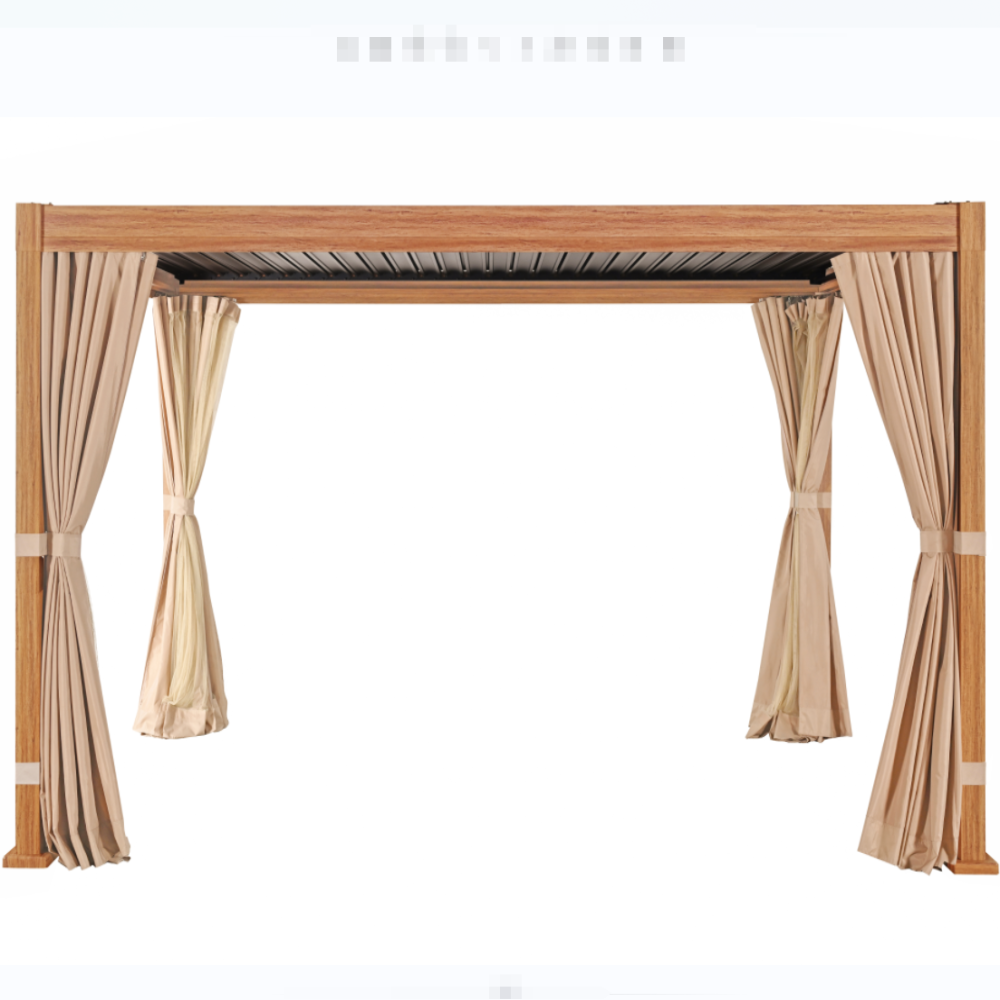

TPL23568W 3X4MxH 2.4M Manual Louver Pergola

Alu post with woodgrain :100*100*1.15 mm

Galvanized steel lintel with woodgrain :117*25*0.8 mm    Alu track:52*40.5*1.0mm

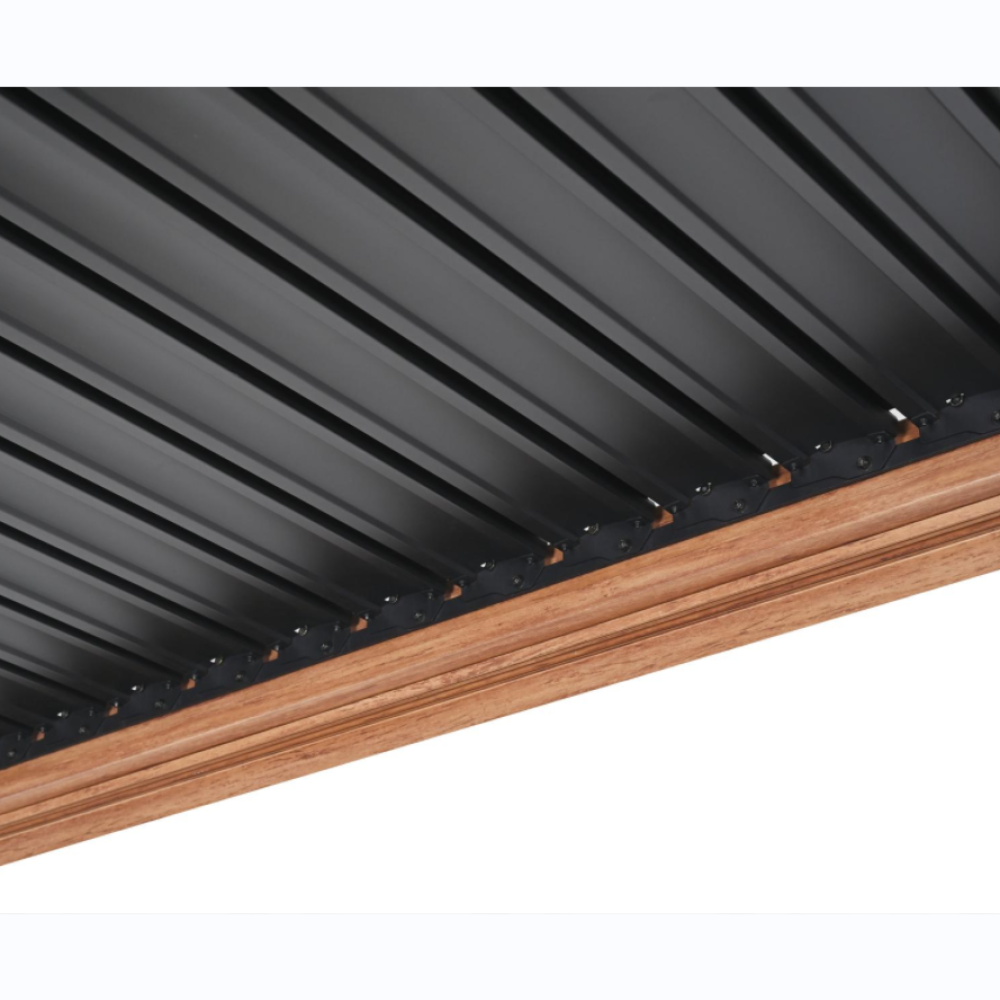

Galvanized steel louvers:0.5mm

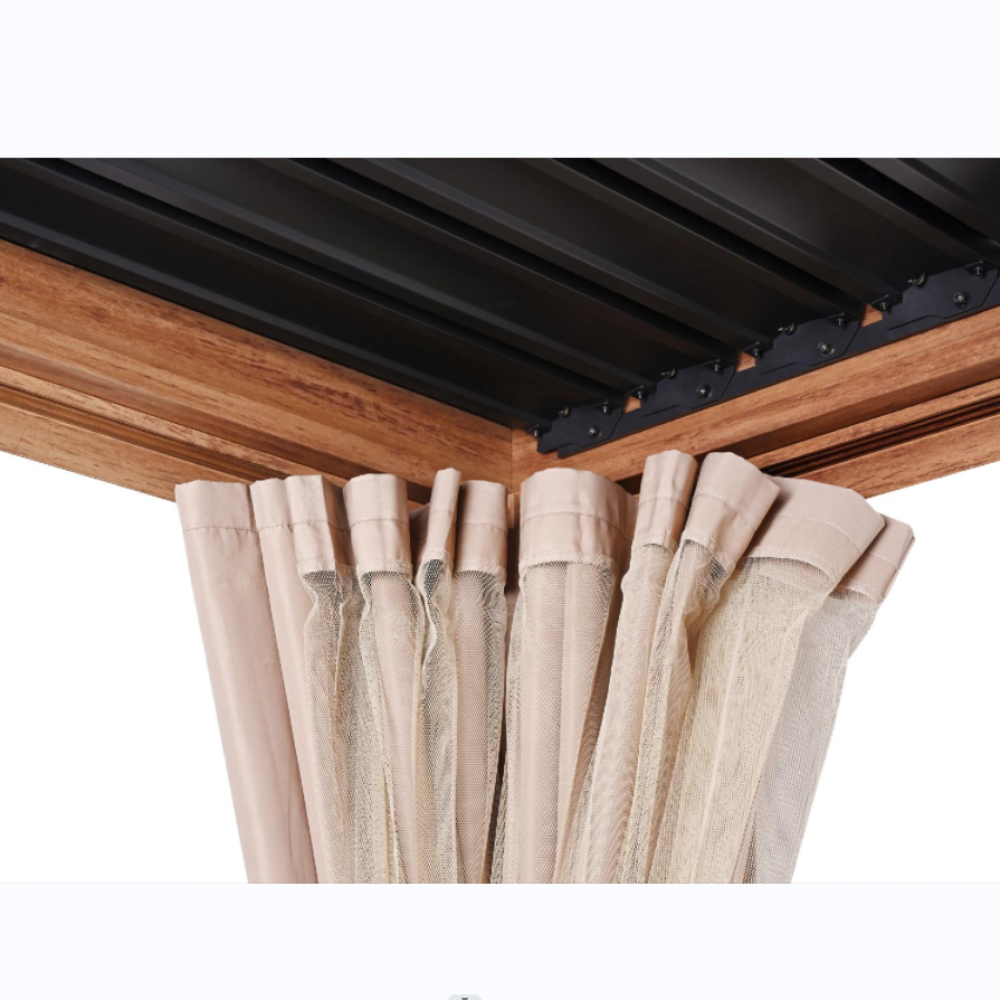

4 sides mosquito nets included

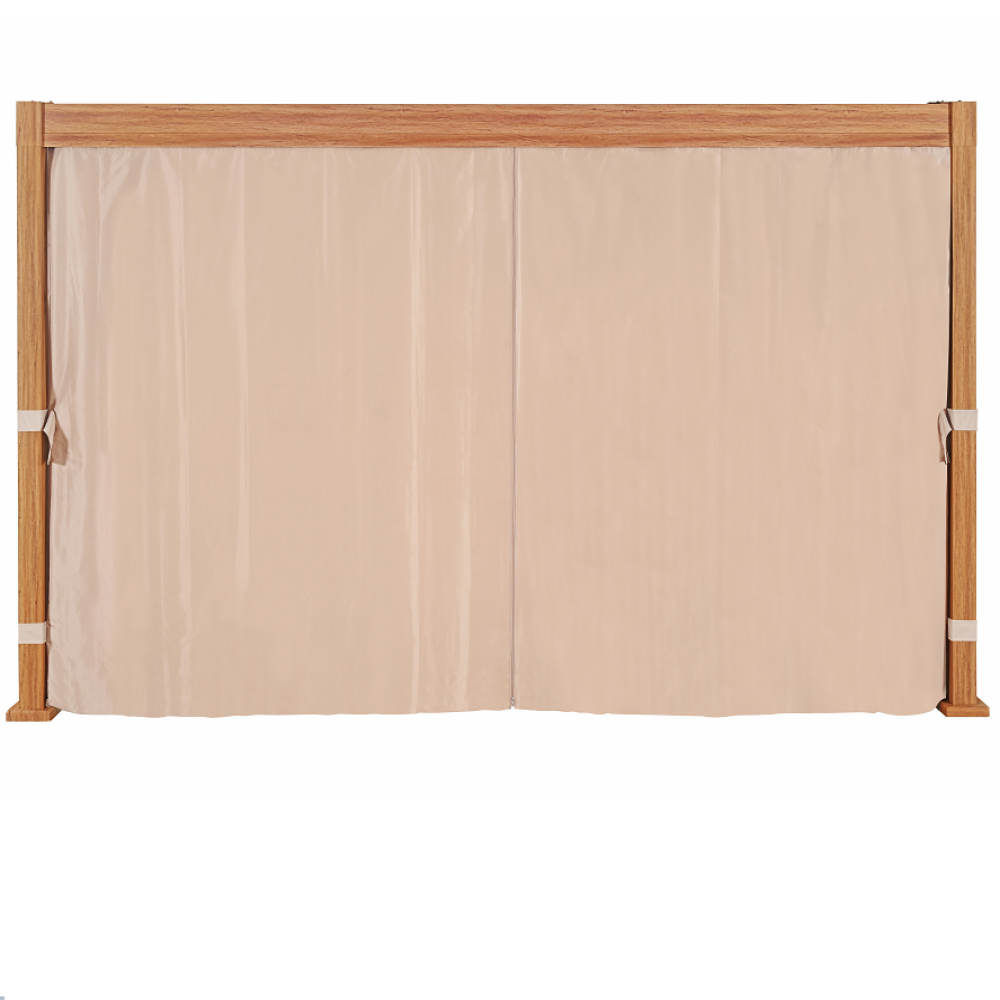

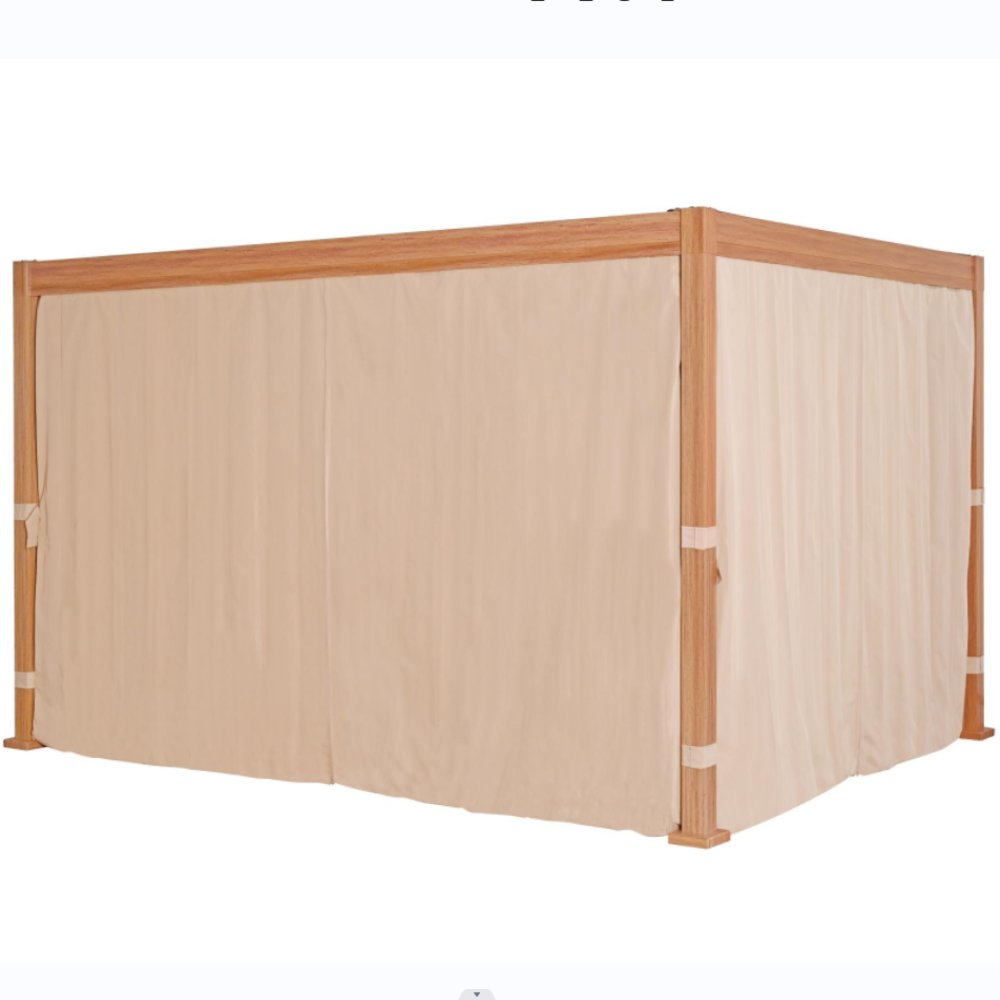

4 sides sidewalls included

Max snow load: 100kgs/m2

Details



PRODUCT





Infinitive



rectangle



Number of posts



4 pcs



Type of roofing



Galvanized steel louvers:0.5mm



Total number of side panels&mosquito netting



4 & 4



COLOR & MATERIAL





Color Frame

wood grain



Color Side Panels



light brown



Colour roof



Black



Material roof



Galvanized steel louvers: 0.5mm



Material frame



Aluminium (power coated surface)&Galvanized steel(power coated surface)



Material side panels



polyester 160gsm

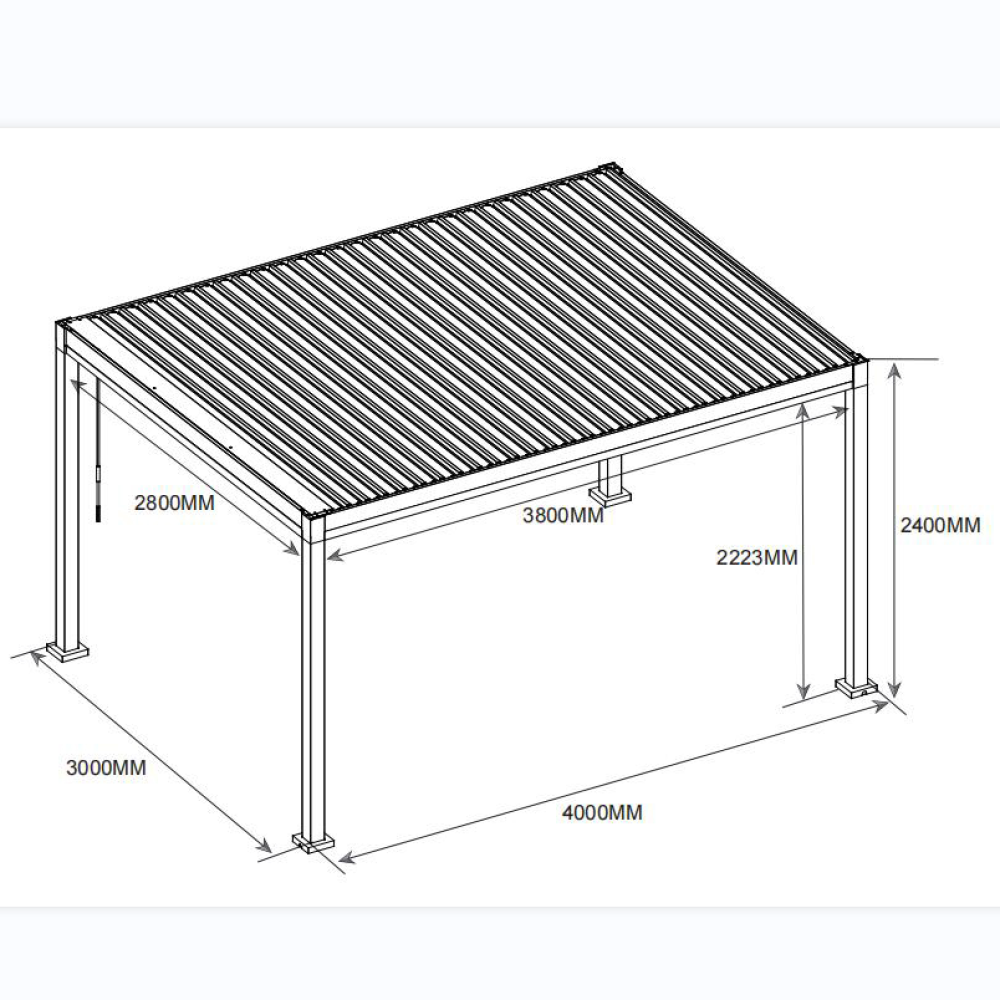

DIMENSIONS & WEIGHT





Depth outside



300 cm



Width outside



400 cm



Note Dimensions



All data are approx. dimensions.



Passage Height

227 cm



 Ridge Height



240 cm



Wide base size



380 cm



Deep base dimension



280 cm



Material thickness Roof



0.6mm



Material thickness of posts



1.15 mm



NOTES



Languages Operating instructions



Deutsch (DE)

Englisch (EN)
