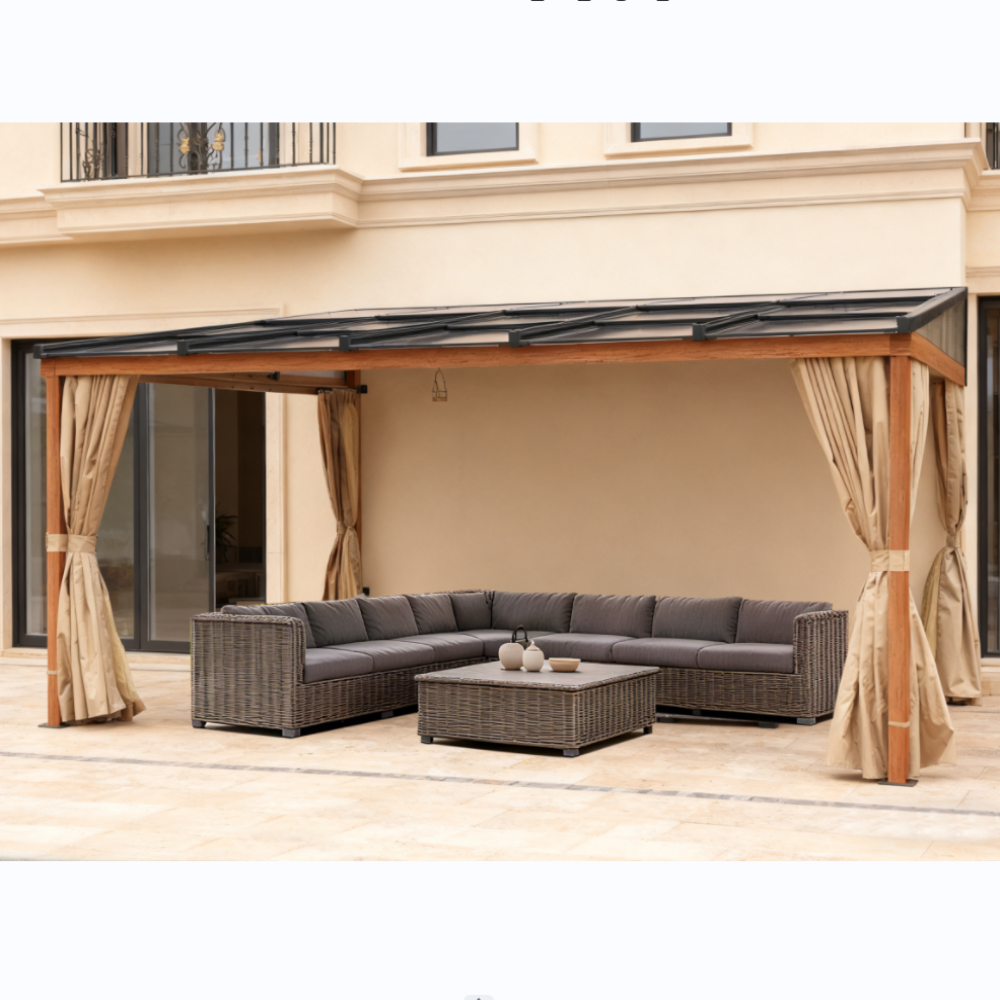

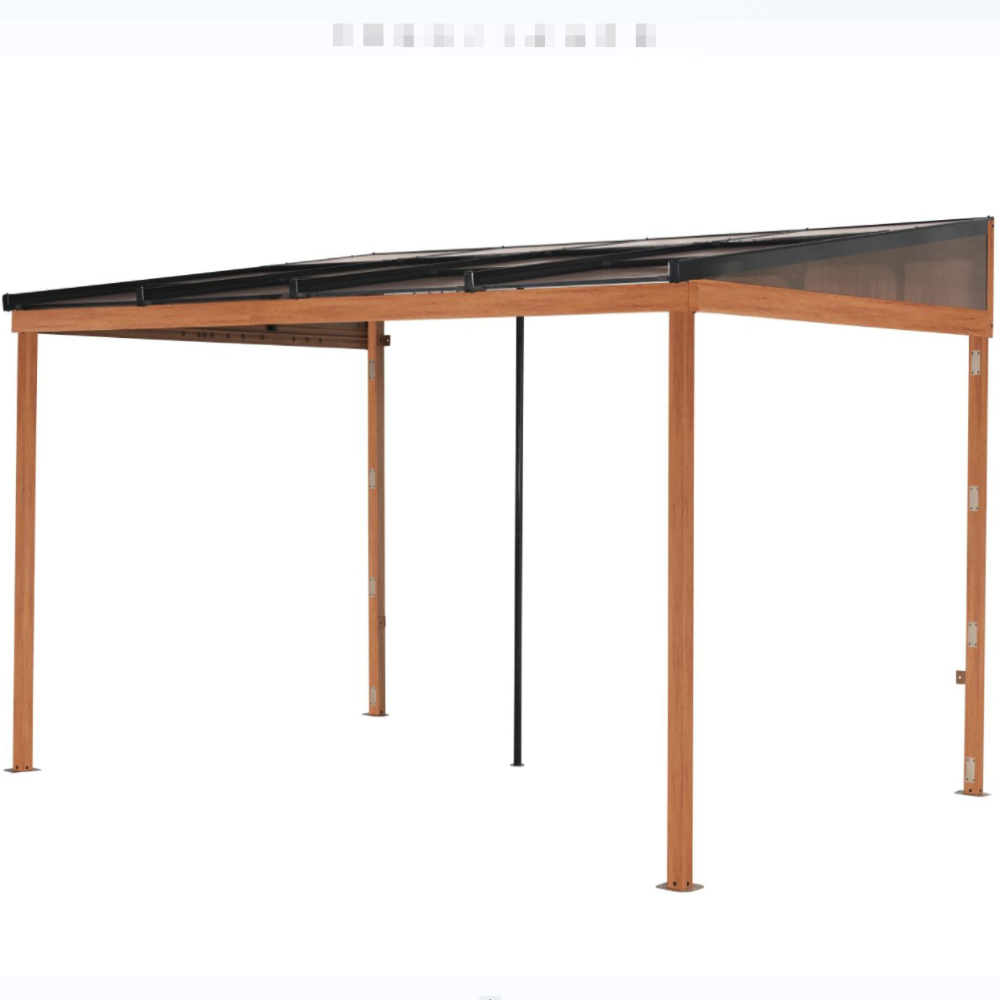

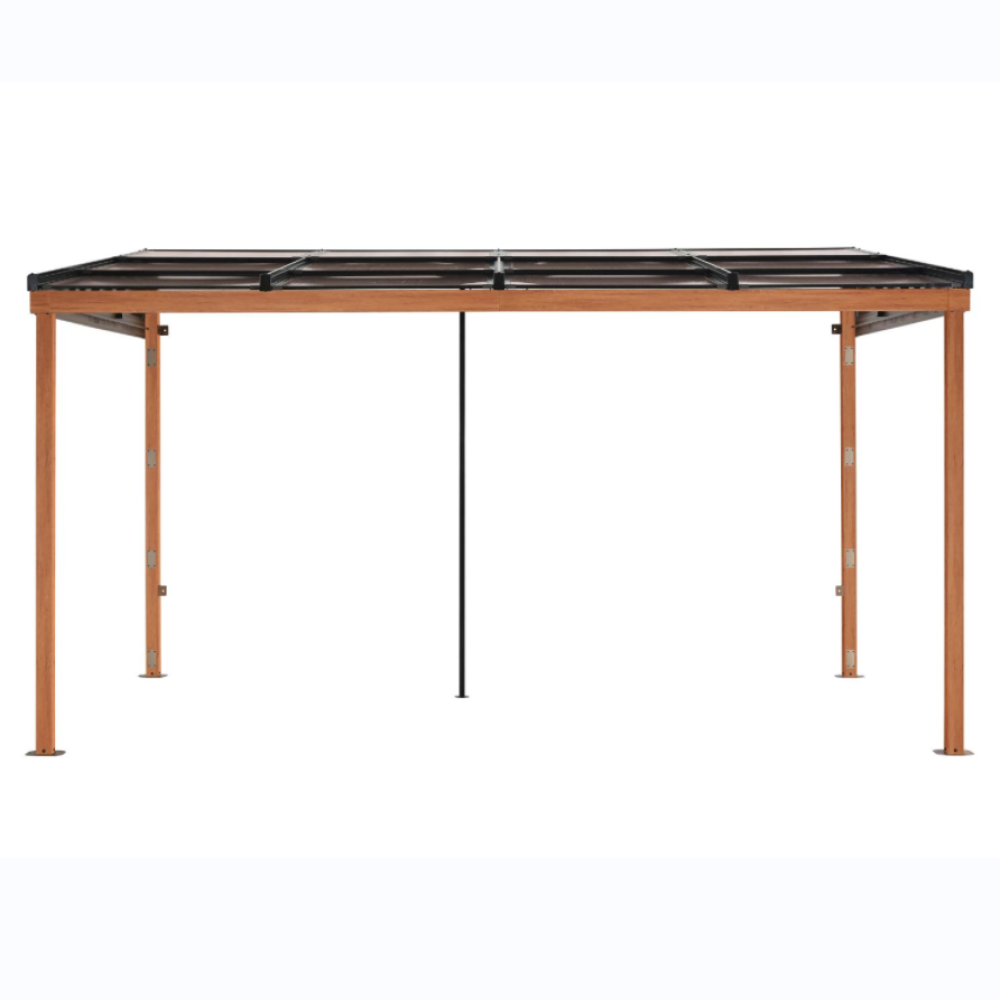

Art No.TGA2367W2 size:3.6*4.8*2.05/2.4m Wall-mounted PC Gazebo
•Galvanized Steel Post: 75*75 *0.9 mm

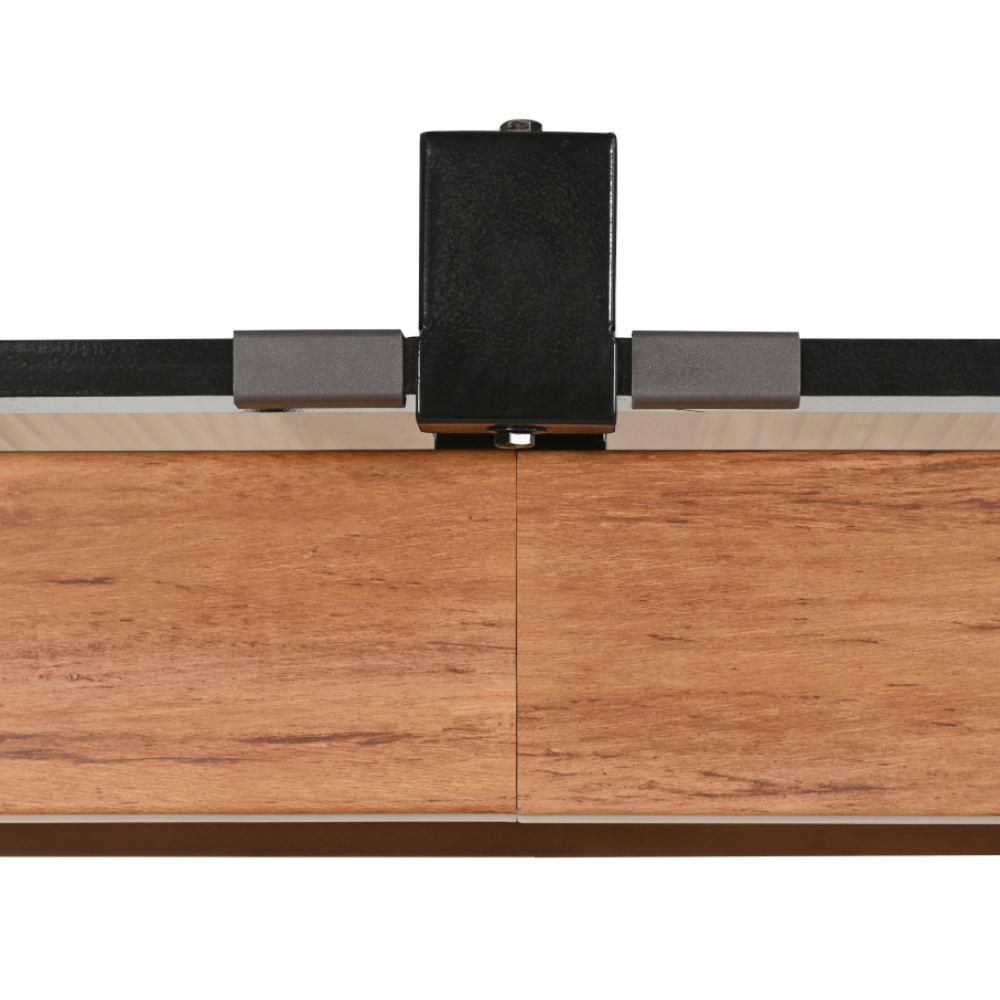

•Galvanized Steel Crossbeam: 100*20 *0.8 mm
Left & right Alu Crossbeam:119*45*1.0 mm
supporting bar：2090*2215*0.8 mm
•Aluminum push-pull frame

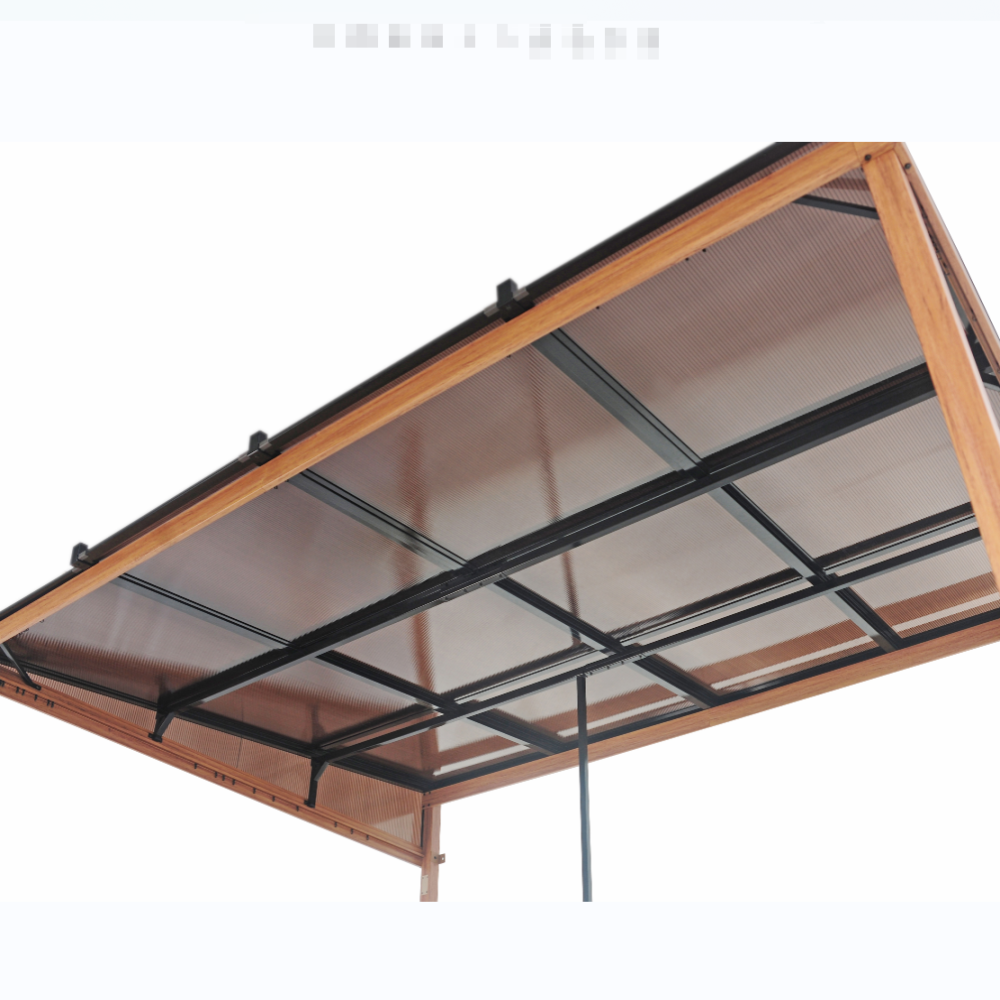

•7.8 mm PC Board Roof can withstand up to 50 kg of snow per square meter.

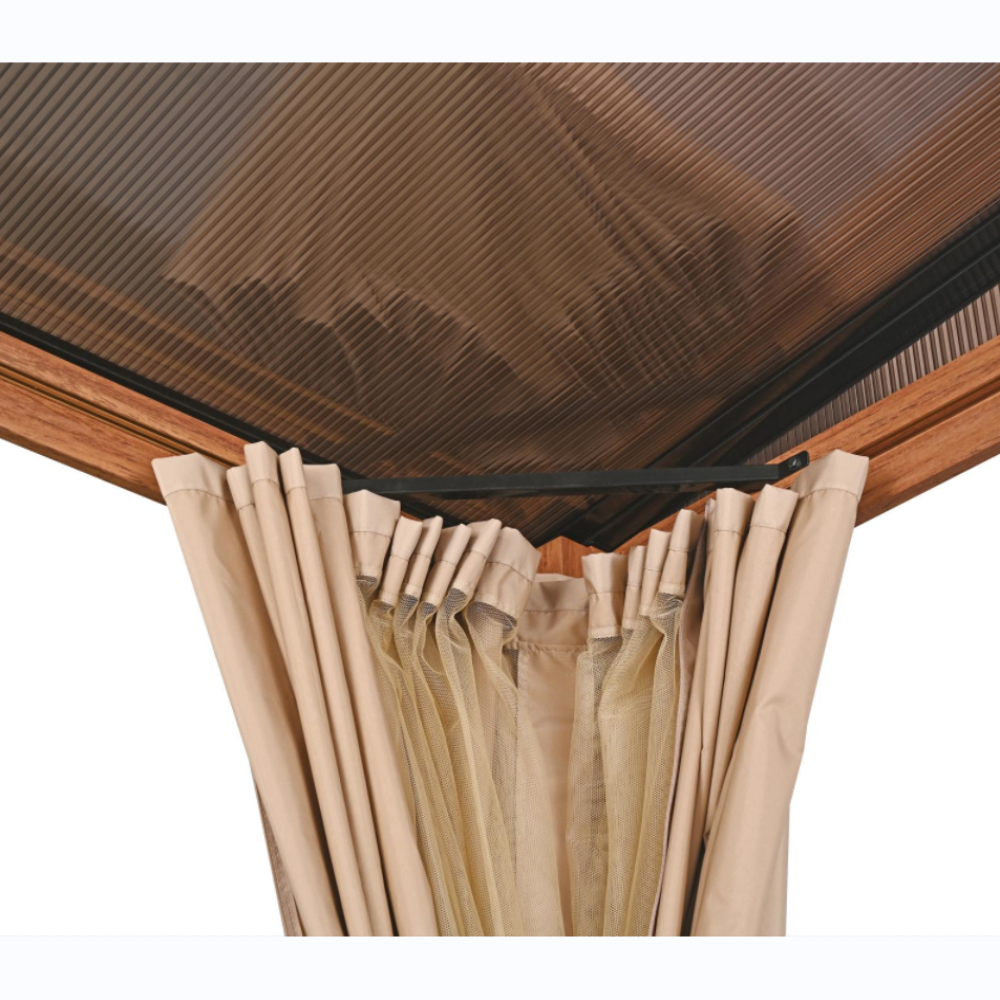

•Sidewalls and Mosquito netting are not included
Galvanized Steel construction provides strength and durability

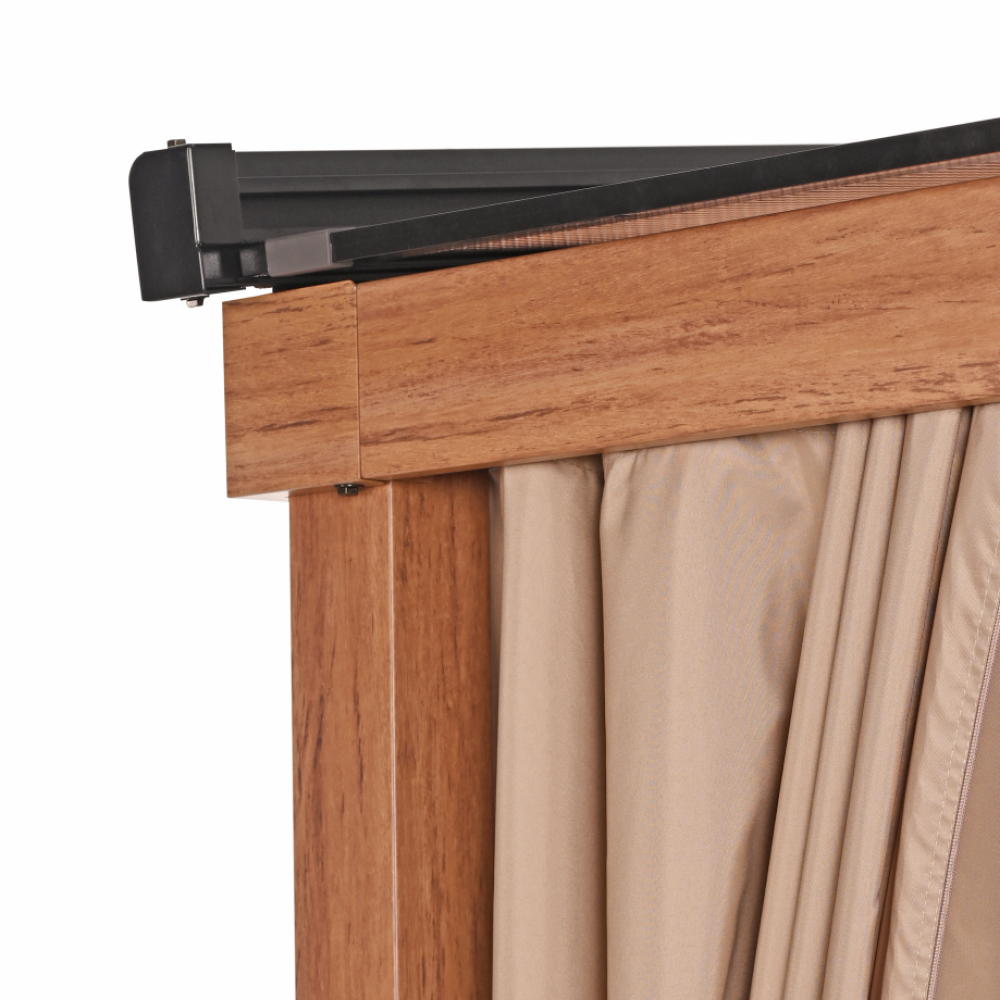

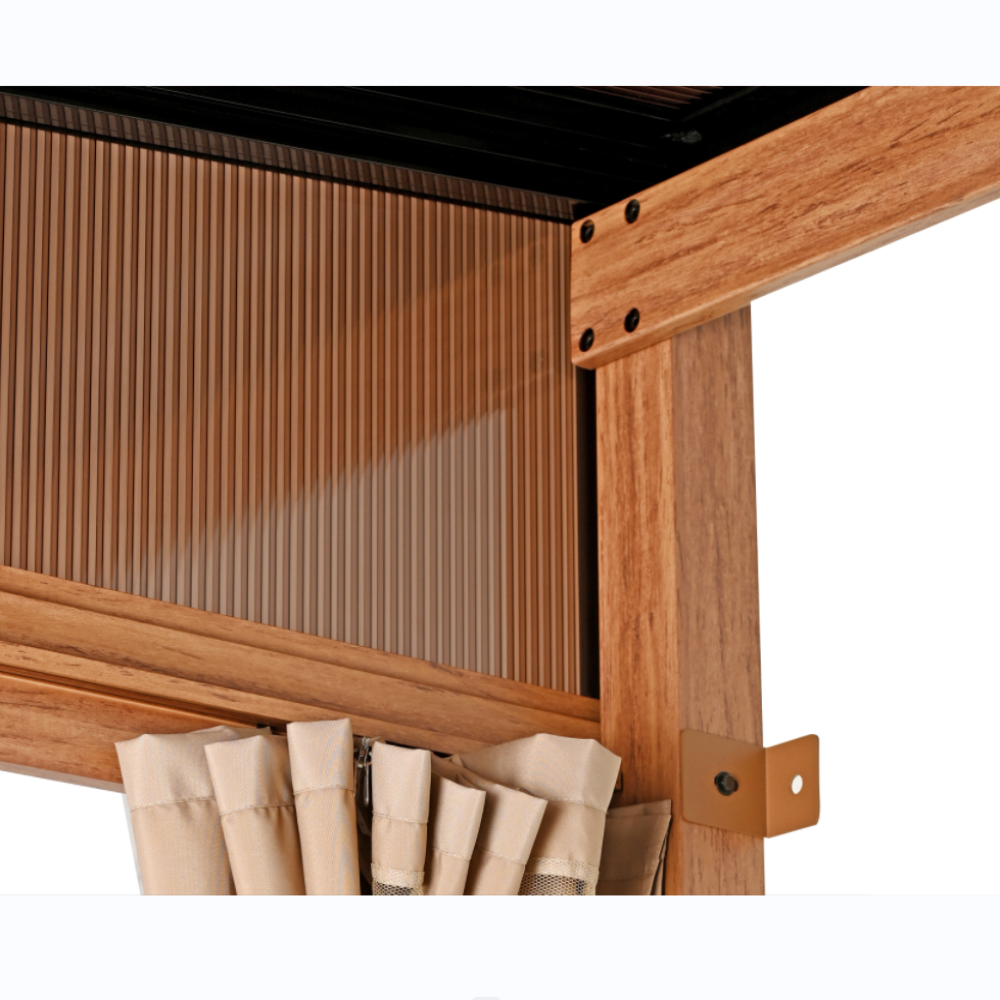

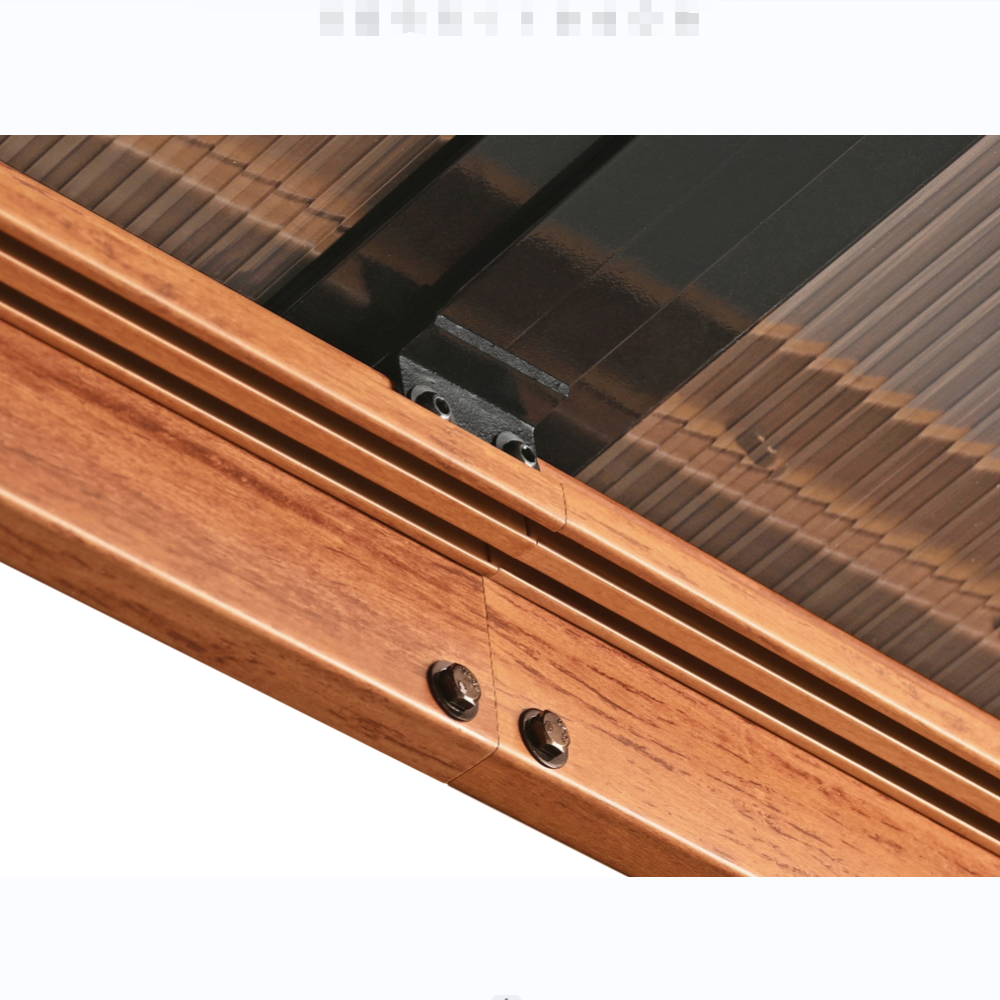

wood-grain finish on the posts and lintels add more modern feel
Details
PRODUCT
|
Infinitive
| rectangular |
Number of posts
| 4 pcs |
Type of roofing
| Poly-carbonate web sheets |
|
COLOR & MATERIAL
|
Color Frame | brown |
Color Roof | brown |
Material roof | Poly-carbonate (PC) |
Material frame
| Galvanized Steel |
Material side panels
| / |

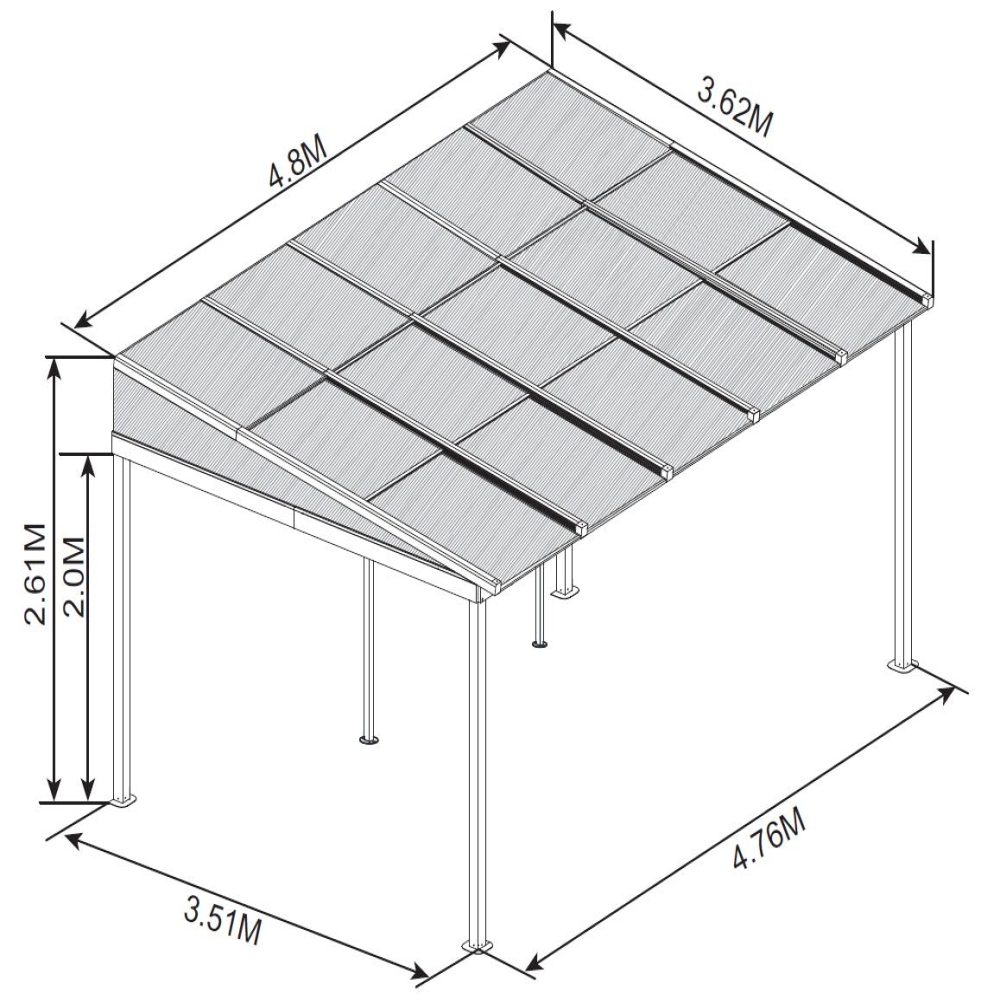

DIMENSIONS & WEIGHT
|
Depth outside
| 362 cm |
Width outside
| 480 cm |
Note Dimensions
| All data are approx. dimensions. |
Passage Height | 200 cm |
Ridge Height
| 260 cm |
Wide base size
| 476 cm |
Deep base dimension
| 351 cm |
Material thickness Roof
| 7.8 mm |
Material thickness of posts
| 0.9 mm |
NOTES
|
| Languages Operating instructions |
Deutsch (DE) Englisch (EN)
|
Assembly instructions
| Self-assembly with assembly instructions |
